EFFICIENCY AND FLEXIBILITY

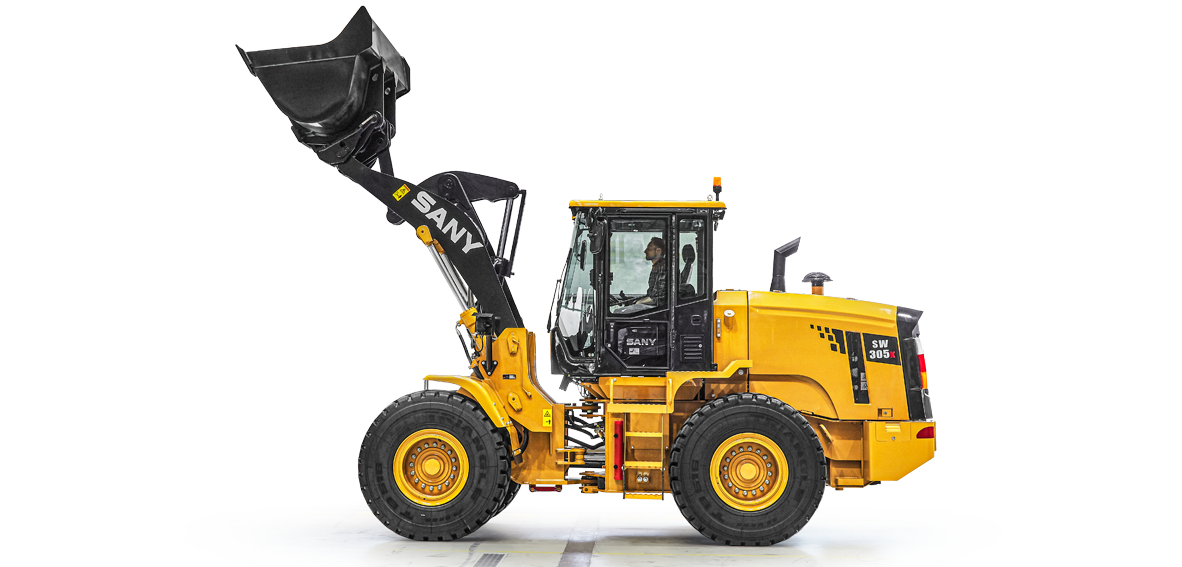

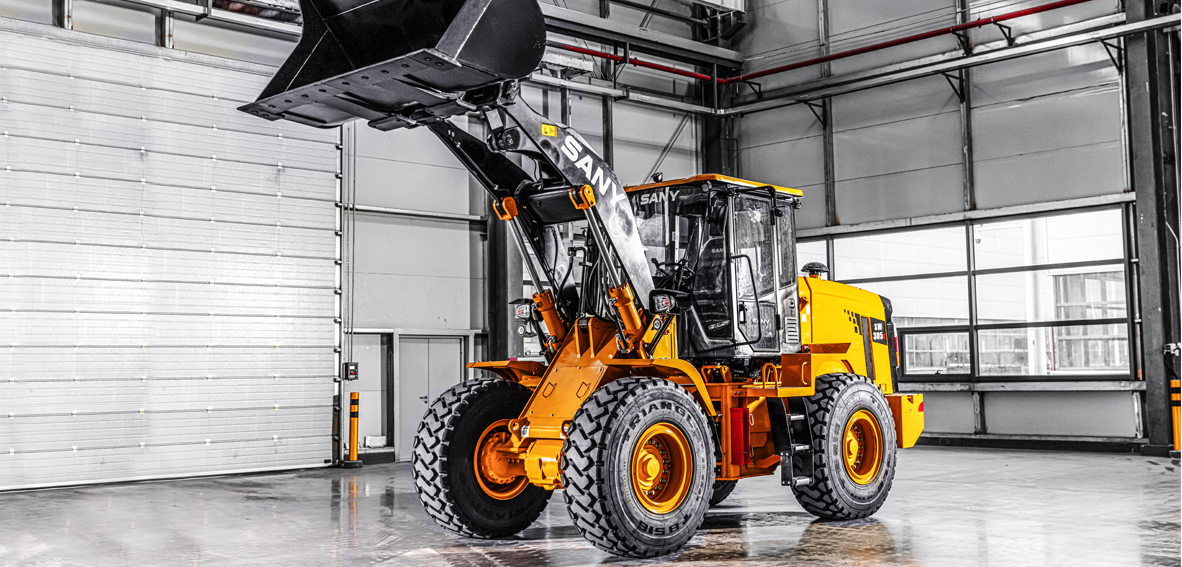

SANY’s new SW305 wheel loader takes productivity to a new level. With its powerful Deutz common rail diesel engine and robust, heavy-duty design, it is the ideal companion wherever strength and reliability are required. Its distinguishing features are its high breakout force and high tipping load. Thanks to its large number of accessories, this formidable package is a multi-purpose machine capable of successfully completing any type of wheel loader task.
| ENGINE | ||
| Power according to ISO TR14396 | 129 / 2 200 | kW / rpm |
| DRIVE | ||
| Travel speed (petit march) | 7 | km/h |
| Travel speed (high gear) | 41 | km/h |
| AXLES | ||
| Oscillation angle | 24° | |
| ADDRESS | ||
| Max turning angle | 40° | |
| External turning radius | 5 382 | mm |
| HYDRAULIC SYSTEM | ||
| Max oil flow | 220 | l/min |
| DIMENSIONS | ||
| Overall length (transport position) | 7 518 | mm |
| Overall width | 2 545 | mm |
| Overall height | 3 405 | mm |
| Wheelbase | 3 000 | mm |
