SY26U

HIGHLIGHTED FEATURES

+ 2 additional proportional  control circuits with joystick operation
as  standard

+ Capacity to store
+  8 auxiliary devices

+ Double-acting hydraulic circuit for
+  quick coupling incl. pipe system

+ Safety valves on boom and arm

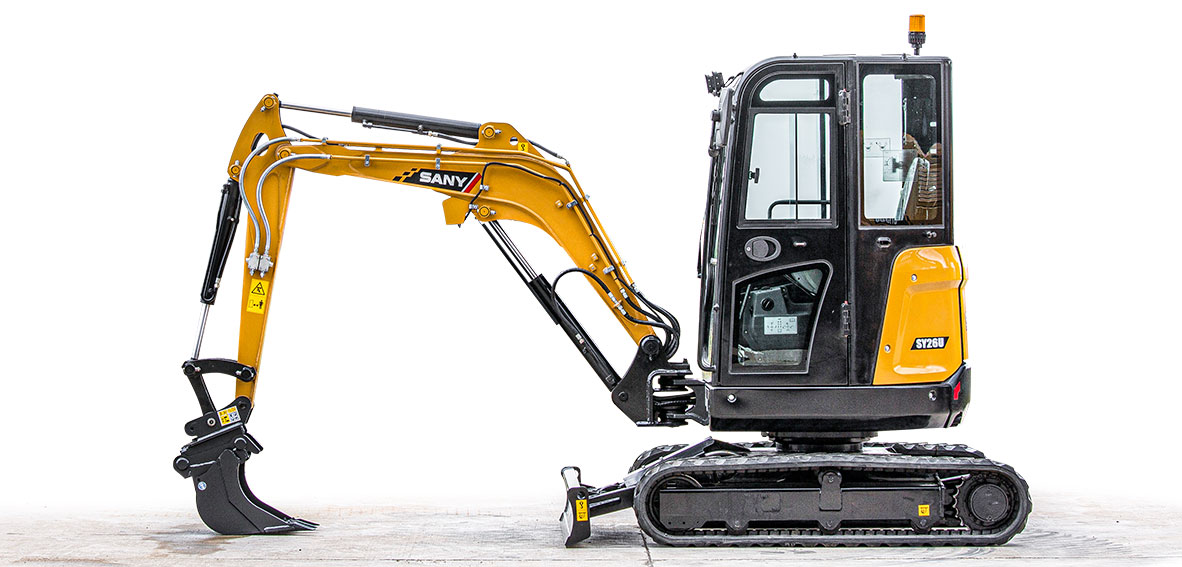

SY26U
SY26U - Imagen 2
SY26U - Imagen 3
SY26U - Imagen 4
SY26U - Imagen 5
SKU SY26U Categoría Etiquetas ,

COMPACT POWER FOR SMALL DETAILS

For the most precise work on city construction sites or in gardening and landscaping tasks, maneuverability and sensitive control are essential. That and a concentrated load of energy make the SY26U a high-quality power source that makes it your reliable partner.

DIMENSIONS
Operating weight 2 760 kg
Bucket capacity 0.06 m³
Lunghezza transport 4 285 mm
Long-distance transport 1 550 mm
Overall height 2 430 mm
ENGINE
Power 15.2 kW 2 500 rpm
WORKING RANGE
Max. excavation depth 2 820 mm
Maximum range 4 850 mm
Min. turning radius 2 110 mm
ISO bucket breakout force 27.9 kN
ISO arm pulling force 14.2 kN
HYDRAULIC SYSTEM
Max oil flow 81 l/min

POWERFUL AND MOBILE: THE SY26U IS WELL EQUIPPED BY NATURE

It has everything you need to become an indispensable helper. Not only because of its power and durability, but also because of the precise behavior of all the components, which feature an advanced hydraulic system. Great performance at a fair price – that’s what profitability means to us.

HANDLING COMFORT / CABIN

›  Heating
›  Radio with loudspeakers
›  USB connector (music)
›  Adjustable armrests*
›  12 V connection*
›  Windscreen wipers
›  Additional control circuit 1 on control lever*
›  Additional control circuit 2 on control lever*
›  Suspended seat*
›  8 pre-set work tools*
›  Removable front window

* SY26U Canopy

SECURITY

›  Battery disconnect switch*
›  Travel alarm*
›  Rotating signal lights*

* SY26U Canopy

WORK EQUIPMENT

›  Hammer installation*
›  Clamp installation*
›  Adjustable oil flow for accessories*

* SY26U Canopy

WORK LIGHTING

›  LED work lights on front roof*
›  LED work light on boom*

* SY26U Canopy

LOWER BODY

›  300 mm rubber chain*
›  Tie-down rings*

* SY26U Canopy

ENGINE

›  Diesel filter*
›  Box or compartment to store grease stain*
›  Guard air filter*
›  Air filter*

* SY26U Canopy

HYDRAULIC SYSTEM

›  Swing brake*
›  2 travel speeds*
›  Main filter*
›  Hydraulic pre-control of the joystick*
›  Filter for the pre-pressure circle*

* SY26U Canopy



SY26U Brochures
Download [PDF 5.3 MB]
